Commercial Packaged Heat Pumps

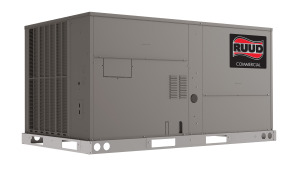

RHPCZR/RHPCZT Renaissance Line Achiever® Series Packaged Heat Pump
- Factory charged with R-410A HFC refrigerant
- Wired and run tested
- Scroll compressors with internal line break overload and high pressure protection
- Model RHPC has a single-stage compressor
- Convertible airflow – vertical down flow or horizontal sideflow
- Forkable base rails for easy handling and lifting
- Cooling operation up to 125°F ambient
- MicroChannel evaporator and condenser coil
- PlusOne® ServiceSmart package includes: Qwik-Change Flex-Fit Rack™, Qwik-Slide Blower Assembly™, &Qwik-Clean Drain Pan
- Over-flow condensate sensor
- PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
- One-piece top cover and base pan with drawn supply and return opening
- Two-piece control door
- 1/4 turn fasteners on filter access door
- Color-coded and labeled wiring
- External lockable gauge ports
- TXV refrigerant metering system
- Solid-core liquid line filter drier
- High pressure and low pressure/loss of charge protection with built-in Smart Logic
- Insulation encapsulated throughout entire unit
- New product footprint with matching connections
- Improved factory lead times
Specifications
- Nominal sizes: 3-6 Tons
- Up to 13.4 SEER2/14 SEER, 11.0 EER/14.1 IEER
- One-stage cooling (RHPCZR) or two-stage cooling (RHPCZT)
- Coil Type: Full MicroChannel
Certifications
Documents
RHPCZR/RHPCZT (3-6 Ton)
Warranties
Compressor
Commercial Applications - Five (5) Years
Parts
Commercial Applications - One (1) Year
