Residential Electric Water Heaters

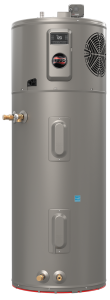

Ultra Hybrid Electric Heat Pump with LeakGuard(TM) and Top Water Connections
Efficiency
- Up to 4.07 UEF reduces operating cost
- ENERGY STAR® rated
- Title 24 Compliant (JA13 Ready)
Performance
- Delivers hot water faster than most standard electric water heaters
- Ambient operating range: 37-145° F is widest in class, offering more days of HP operation annually; designed to meet Northern Climate Spec (Tier 4)
Easy Installation
- Easy access side connections
- Quick access to electrical junction box
- Easily replaces a standard electric water heater
Integration
- LED Screen with built-in water sensor alert with audible alarm1
- Integrated EcoNet® Wi-Fi-connected2 technology and free mobile app gives users control over water heater, allowing for customizable temperature, vacation settings, energy savings and system monitoring at home or away
- Demand Response Ready with built-in EcoPort (CTA-2045 Port)
Integrated LeakGuard™ and LeakSense™ leak detection and prevention system
- with factory installed auto water shut off valve limits leaks to no more than 20 ounces of water1, 3
Operation Modes
- Energy Saver
- Heat Pump
- High Demand
- Electric
- Vacation/Away: 2-28 days (or placed on hold indefinitely)
Plus…
- Premium grade anode rod with resistor extends the life of the tank
- 3/4" NPT water inlet and outlet; 3/4" condensate drain connections
- Incoloy stainless steel resistor elements
- Dry-fire protection
- Easy access, top mounted washable air filter
- 2" Non-CFC foam insulation
- Enhanced flow brass drain valve
- Temperature and pressure relief valve installed • Design certified to NSF/ANSI 372 (Lead Content)
Warranty
- 10-Year limited tank and parts
warranty
See Residential Warranty Certificate for complete
information
Specifications
- Up to a 4.07 UEF, Saves up to $576/ year
- Universal Side and New Top Water Connections
- New Duct Ready Design
- Built-in LeakGaurd™ leak detection and prevention
Energy Guide Details
- Understanding Energy Efficiency
- Click here to review this water heater's Energy Guide for more details.
Certifications
Documents
Ultra Hybrid Electric Heat Pump with LeakGuard(TM) and Top Water Connections
Warranties
- 10-Year limited tank and parts warranty
- See Residential Warranty Certificate for complete information
